Vicell V Series

Core Material Expert -- always beyond excellence

vicell -V Product performance

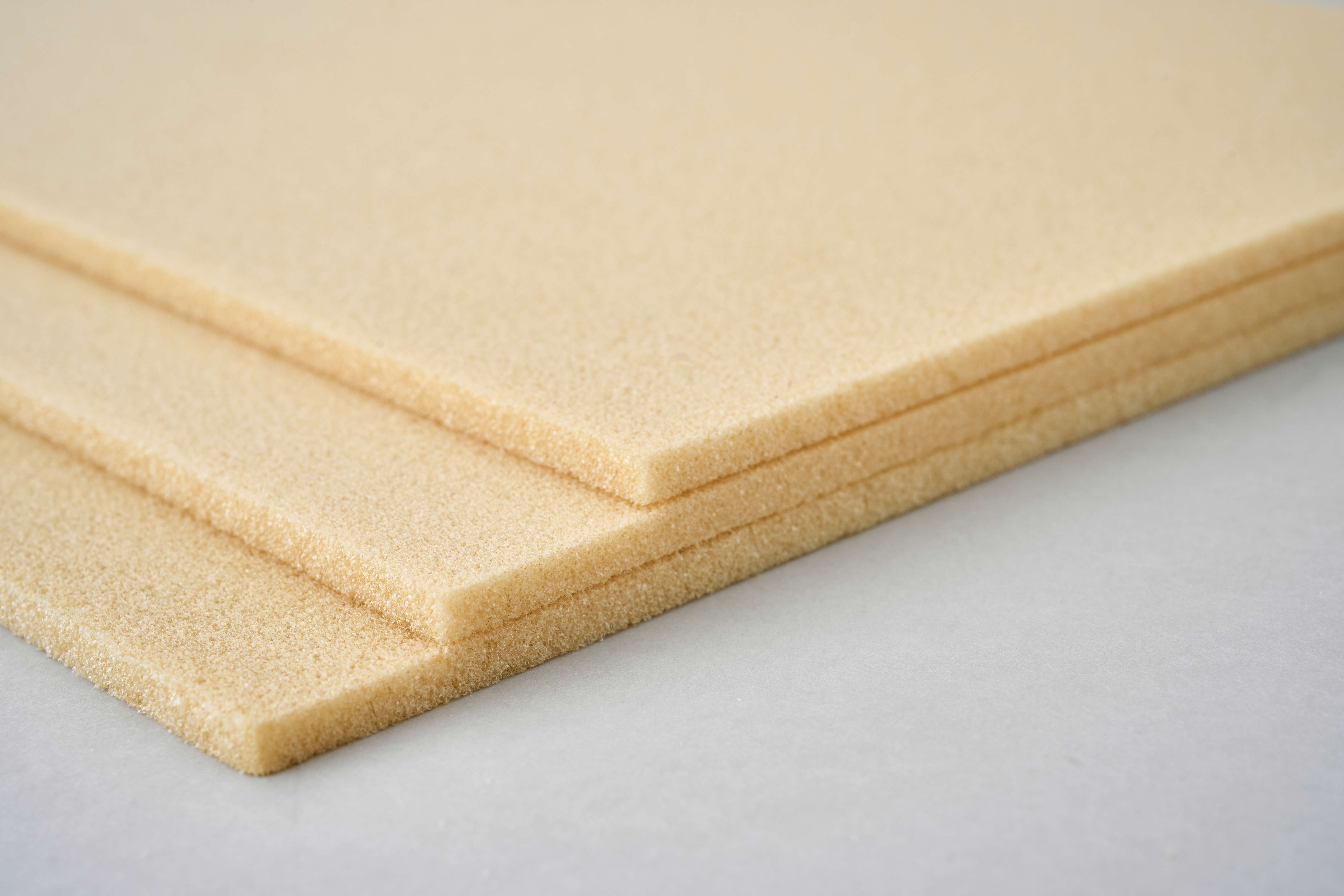

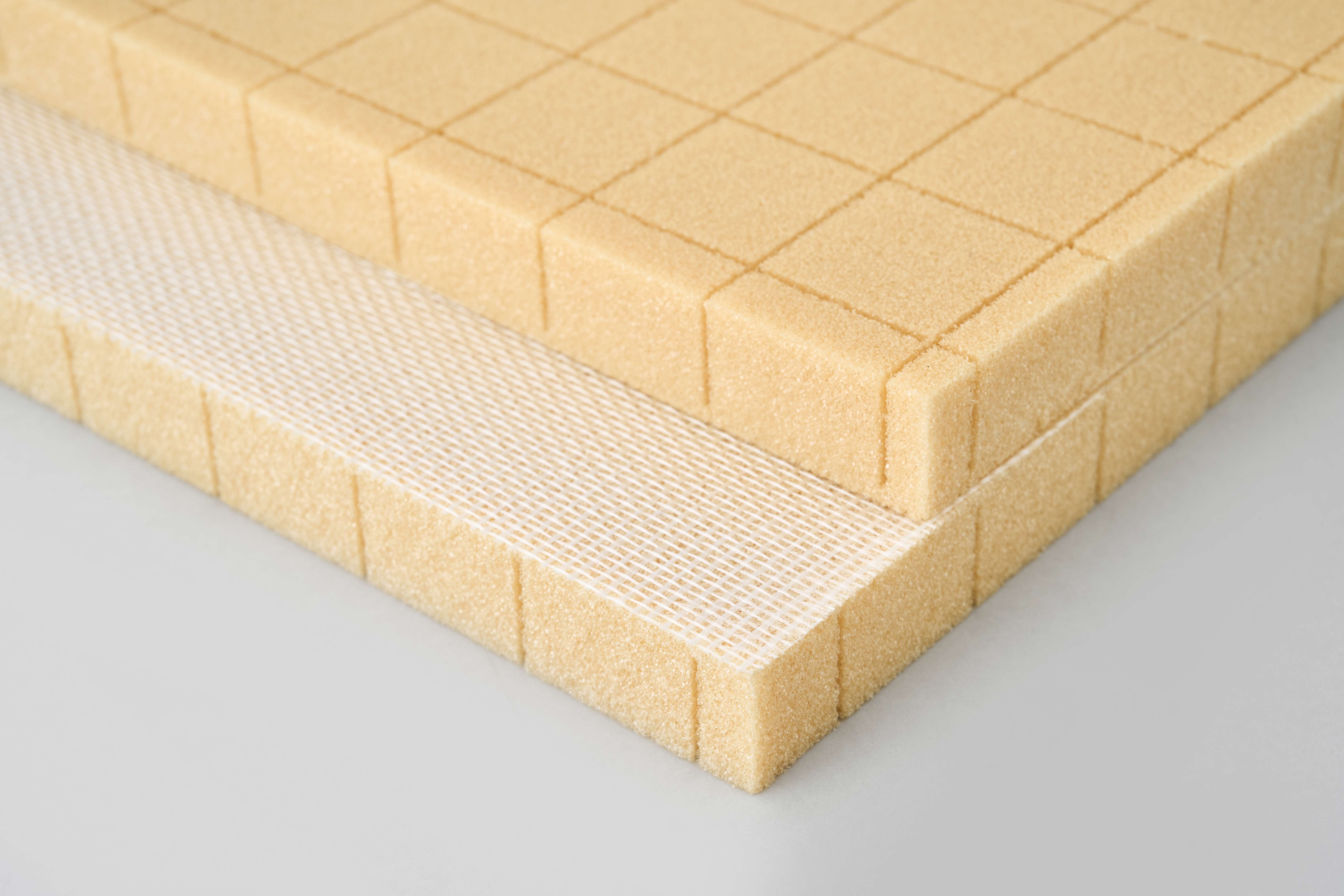

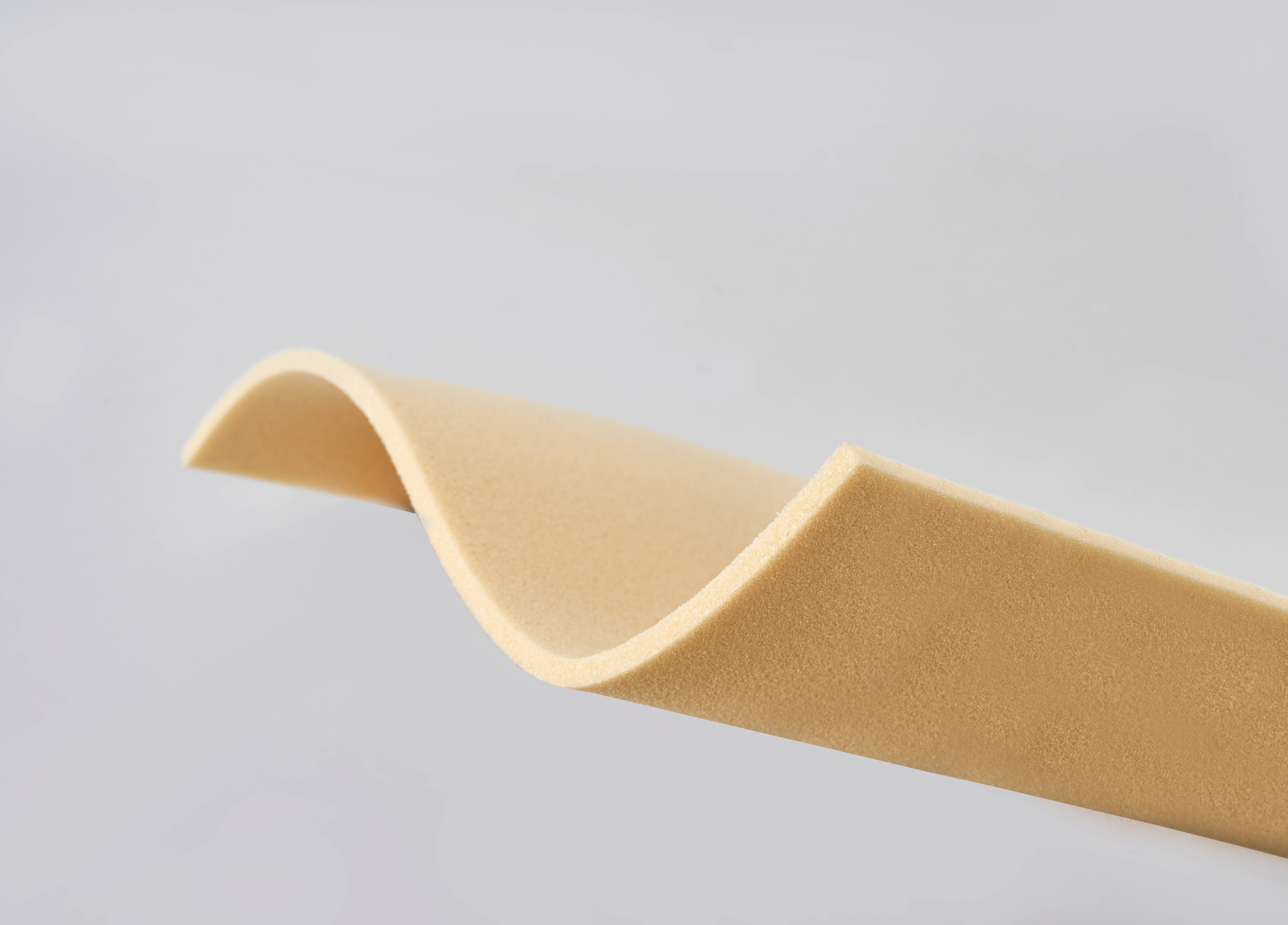

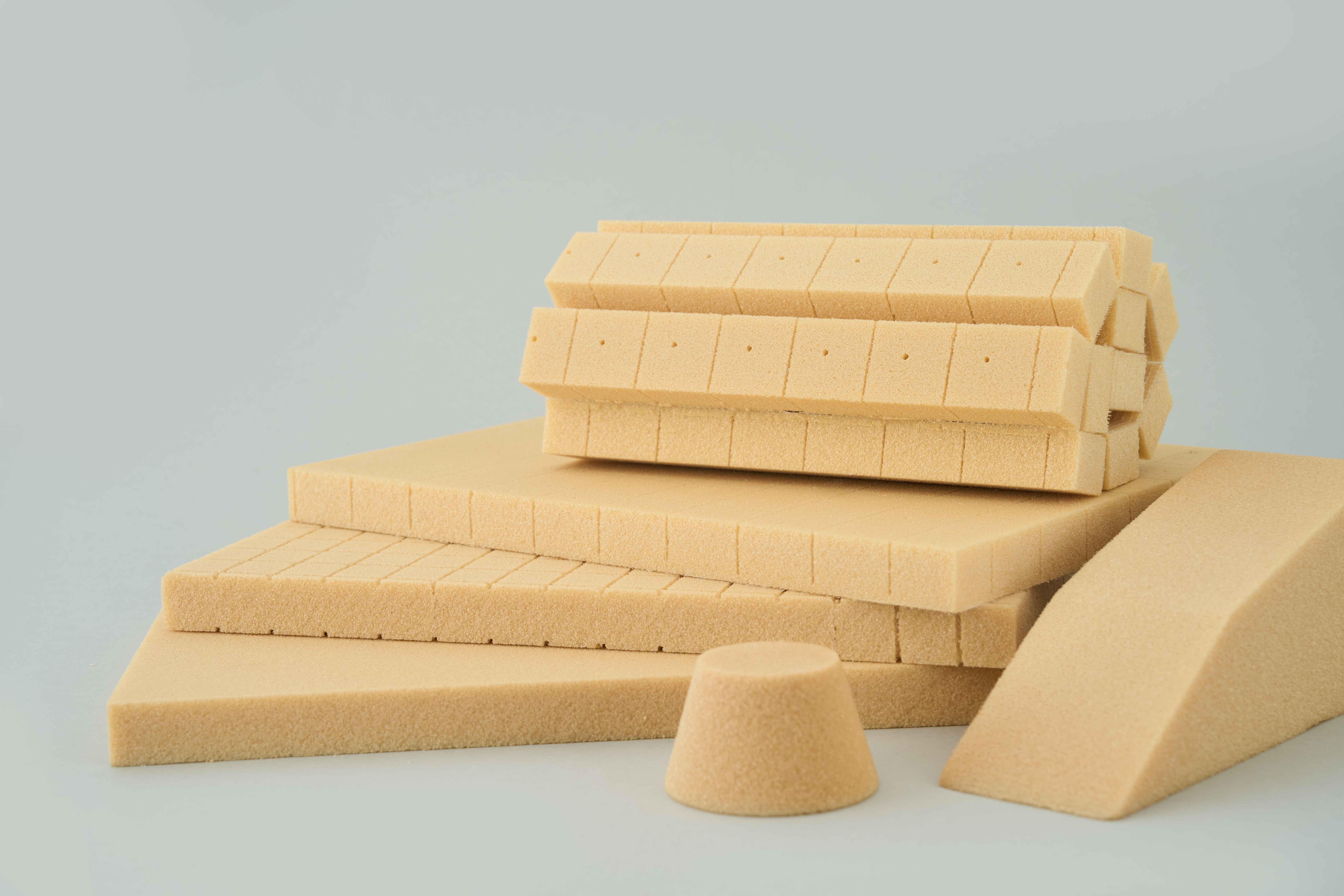

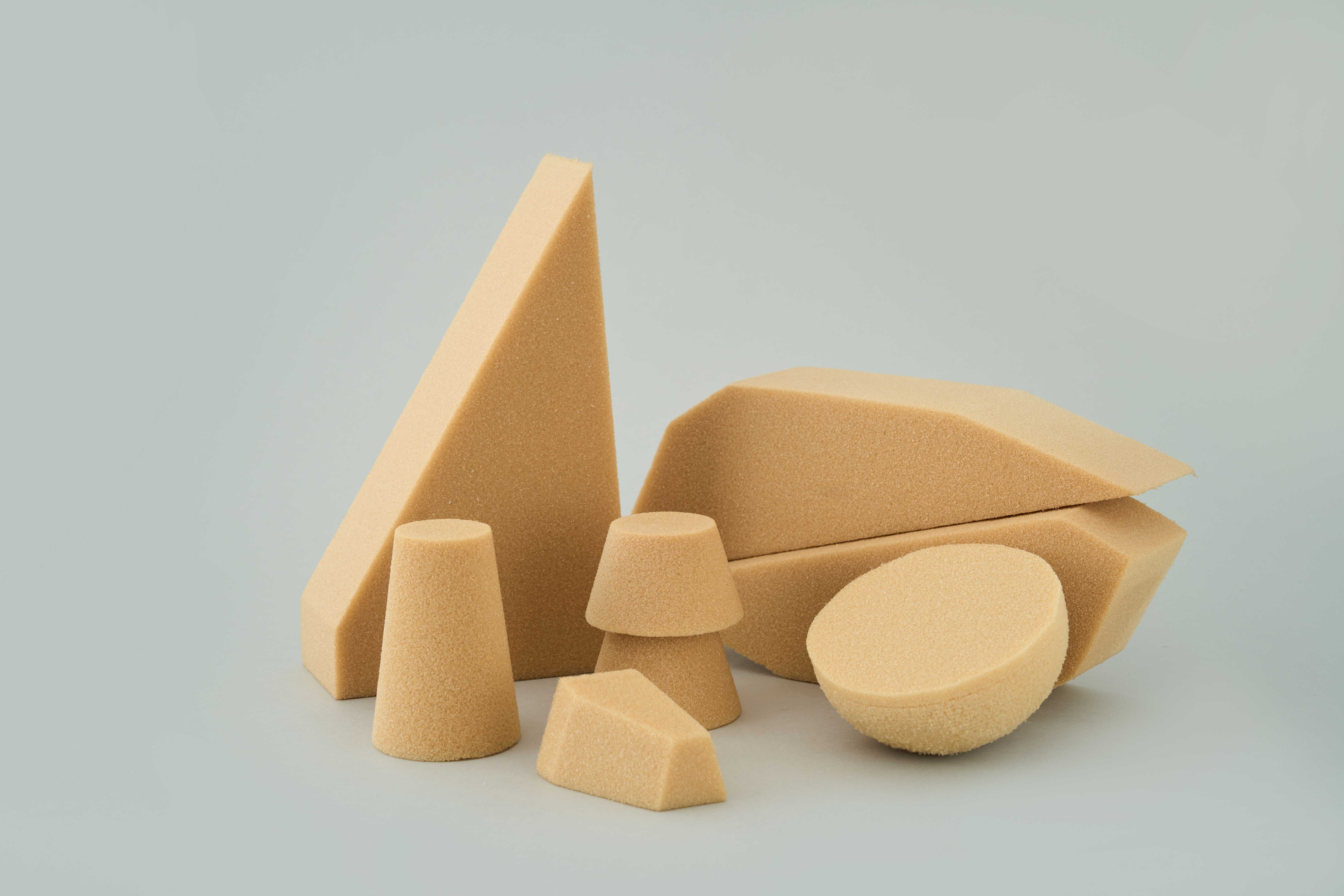

Vicell is closed-cell PVC rigid foam with independent R&D in China, which foams original panels by monomer solution copolymerization, and then processes into finished panels. Since foams’ property depends on resin matrix’s performance and cell structure, bunch of ring structures and cross-linked structures make resin matrix capable of high mechanical and thermal properties. Plus completed and uniform 100% closed-cell structure ensures structural stability.

◆Good mechanical property;
◆Strong resin compatibility, excellent chemical stability;
◆Low burning temperature, heat and sound insulation, shock absorption;
◆Low water absorption, heat and sound insulation; good weather ability;
◆Good processabiltiy
◆Applied to multiple dry-wet molding methods for composites, such as RTM, compression molding, etc.

Vicell-VSeries product model

Model	Properties	Applications
VICELL-V	High temperature resistanceup to 120℃	Turbine blades with high temperatureresistance
VICELL-VC	Excellent mechanical performance and technical applicability	Turbine blades, boats and yachts
VICELL-VR	High strength and rigidity	Special equipment
VICELL-VS	Wide density range, lowwater absorption, high energy absorption, high impact resistance	Boats, vehicle body,energy-saving buildings, military equipment
VICELL-VF	High flame retardant	NEV, individual soldierequipment, fire retardant products
VICELL-VK	High cost performance ratio,traditional material alternative	Heat preservationcompartments,nacelle cover, trailer coach
VICELL-VT	High wave-transmissionmaterial , extensive molding technics	Radome, medical bed board

performance index

（Comparison of measured data of mechanical properties）

产品型号	密度KG/M³ ISO 845	压缩强度MPA ISO 844	压缩模量MPA ISO 844	平拉强度MPa ASTM D638	平拉模量 MPa ASTM D638	剪切强度 MPa DIN 53294	剪切模量 MPa DIN 53294	断裂延伸率 % DIN 53294
Vicell-V45	平均值 45	0.65	50	1.50	55	0.55	16	15
	最小值 40-53	0.50	35	1.00	40	0.50	14	8
Vicell-V60	平均值 60	0.95	80	1.80	75	0.82	22	23
	最小值 54-69	0.80	65	1.50	60	0.73	19	10
Vicell-V80	平均值 80	1.45	110	2.50	110	1.25	30	30
	最小值 72-92	1.20	85	2	85	1.05	25	15
Vicell-V100	平均值 100	2.10	140	3.50	135	1.75	42	35
	最小值 90-115	1.7	110	2.60	110	1.40	35	15
Vicell-V130	平均值 130	3.20	180	4.80	180	2.50	55	40
	最小值 120-150	2.60	145	3.50	130	2.10	45	20
Vicell-V200	平均值 200	5.50	300	7.30	270	3.50	75	45
	最小值180-225	4.50	250	6.50	230	3.20	68	25
Vicell-V250	平均值250	7.00	380	8.80	300	4.70	100	45
	最小值230-275	6.00	330	7.80	250	4.20	84	25
Vicell-VC45	平均值45	0.60	46	1.40	50	0.55	16	15
	最小值40-53	0.50	35	1.00	40	0.50	14	8
Vicell-VC60	平均值60	0.95	75	1.80	75	0.80	20	23
	最小值54-69	0.75	60	1.50	60	0.70	18	10
Vicell-VC80	平均值80	1.40	105	2.50	110	1.20	28	30
	最小值72-92	1.10	80	2.00	85	1.00	24	15
Vicell-VC100	平均值100	2.00	130	3.50	135	1.75	42	35
	最小值90-115	1.70	110	2.60	110	1.40	35	15
Vicell-VC130	平均值130	3.00	170	4.80	180	2.50	55	40
	最小值120-150	2.50	140	3.50	130	2.10	45	20
Vicell-VC200	平均值200	5.50	300	7.30	270	3.50	75	45
	最小值180-225	4.50	250	6.50	230	3.20	68	25
Vicell-VC250	平均值250	7.00	380	8.80	300	4.70	100	45
	最小值230-275	6.00	330	7.80	250	4.20	84	25

application area
